Product Name : YAP-310
Product Description

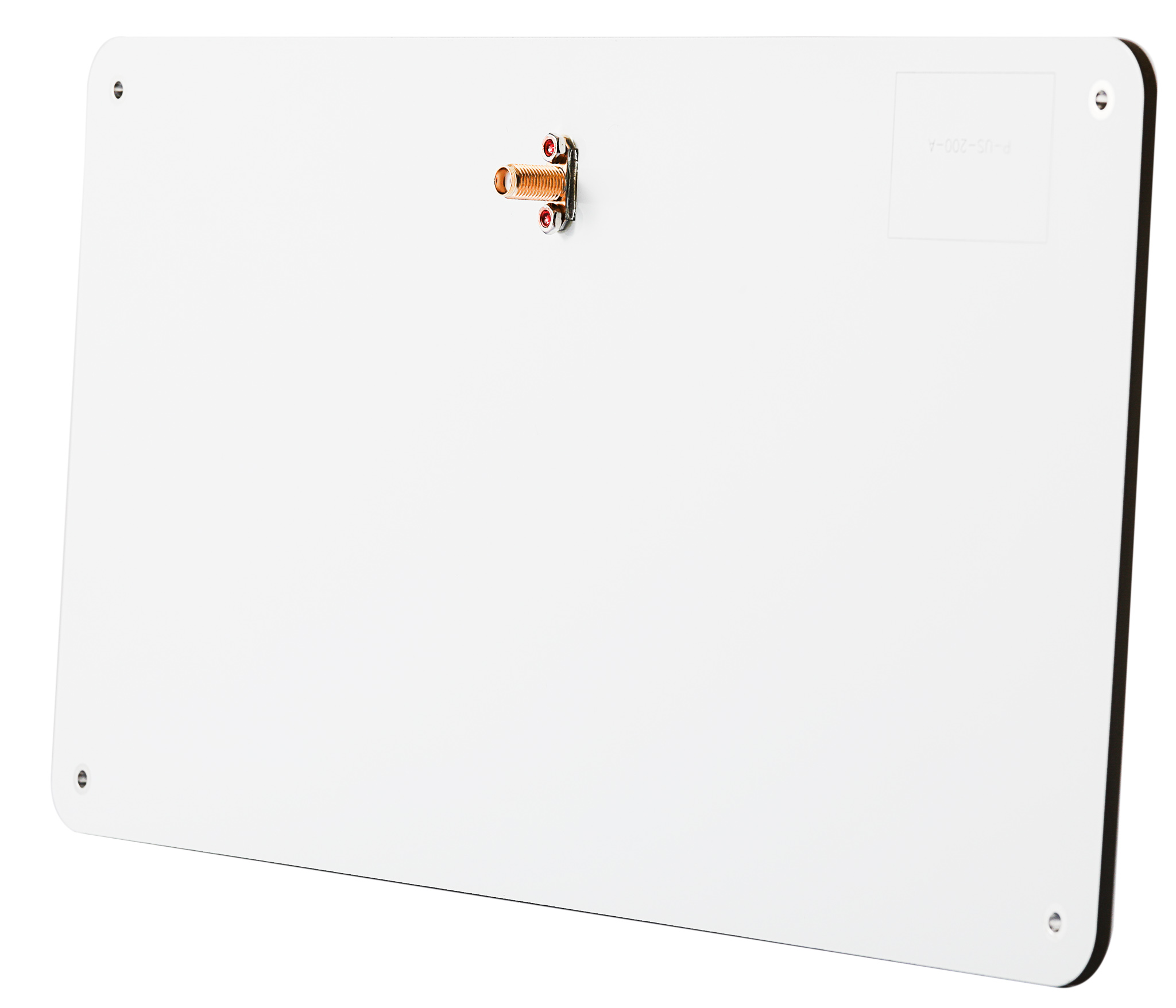

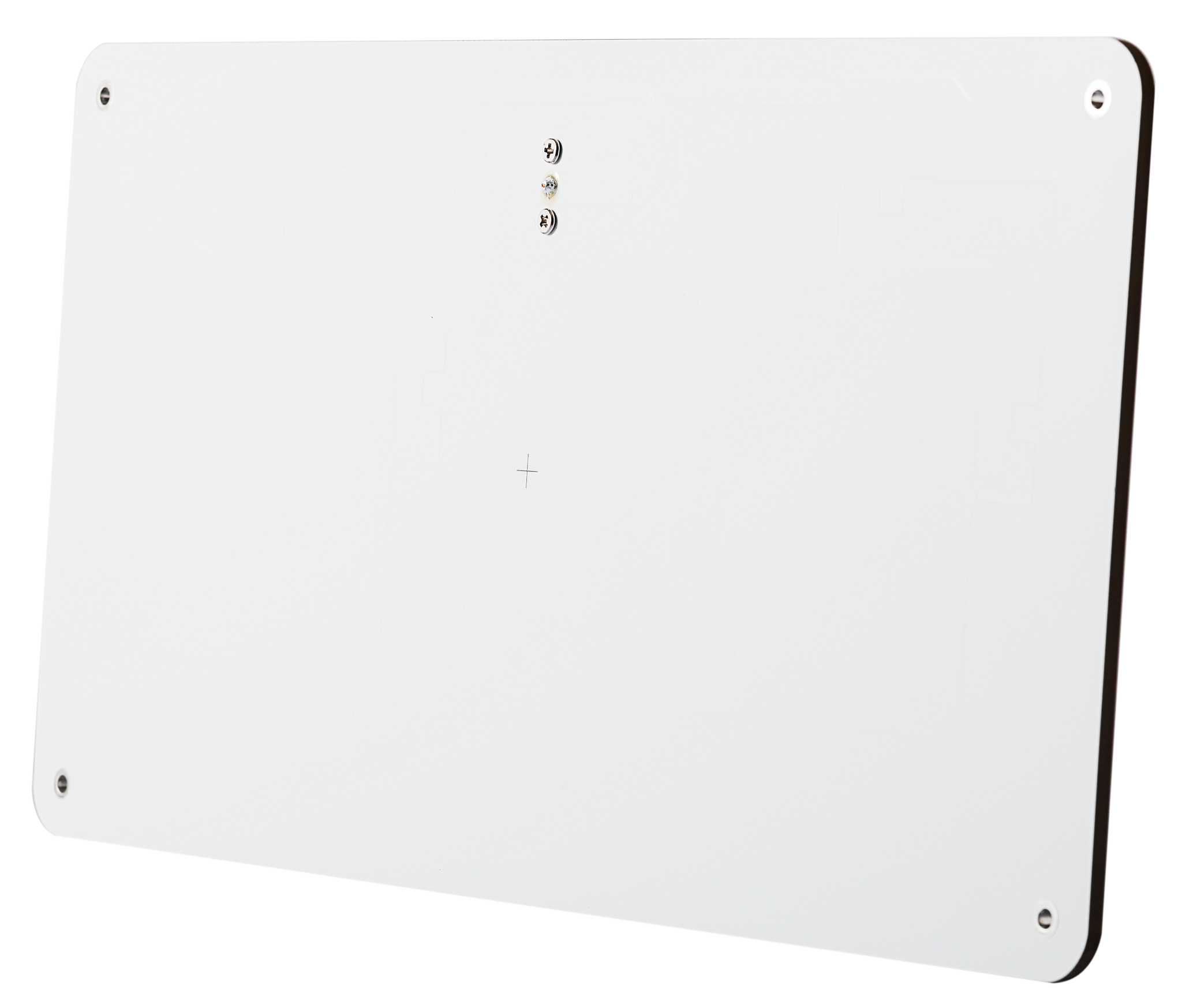

It is a circularly polarized omnidirectional radiating thin RFID high-performance antenna, 150 x 300 x 3mm thin and rectangular shape with a thickness of only 3mm, this is suitable for applications hidden in narrow spaces, such as decorative partitions or machine, or flat surface RFID tracking applications. In addition, it can be applied in production line workstations, smart checkout counters, and conveyor tunnel detection.

Operating Frequency 902~928MHz
Impedance 50Ω
Gain 8.0dBi
Connector SMA Female
Dimensions 150x 300x 3.2 mm
YAP-310 datasheet DOWNLOAD
