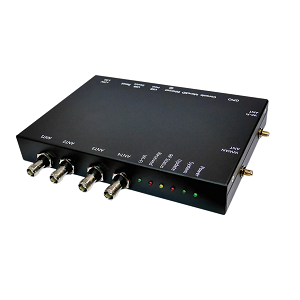

Product Name : AL-800
Product Description
A fixed RFID UHF Reader with built-in operation data collection function and integrated with the cloud. It is a RAIN RFID Reader with built-in Compact Edition Middleware that can customize information collection (TID, EPC), designated cloud service location, etc., does not need to integrate through PC or workstation. Moreover, it could be applied into various industries such as parking lots, the gate or forklifts in the warehouse to do further management or inventory to increase work efficiency.
Product AL-800
Certification NCC、SRRC
Dimension(LxWxD) 183mm X 222mm X 32mm
Weight 630g
Frequency(UHF) 860~960MHz: ® Version 4.2
Transmit Power +1 to +31.5dBm
Max Receive Sensitivity -74 dBm
Air Protocols EPC Global UHF Class 1 Gen2 / ISO 18000-63
Data Interface
  • Ethernet 10/100Base-T auto-MDIX Ethernet port
  • Wi-Fi USB 2.0 type-B HID port, 2.4GHz
  • WAN LTE (Optional)
  • Power In +24V/1A
  • SDK C# .Net
  • Micro-SD
  • USB 2.0 type-A Host
  • USB 2.0 type-B HID port
GPIO 3 Input, 1.5V to 5V, 4 Output Dry Connect
Antenna Ports 4 port monostatic antenna port (TNC JACK)
Read Zones (Maximum) 200 tags/second
Operating Temperature -20℃ to +55℃
Humidity 5% to 95% non-condensing
AL-800 Datasheet DOWNLOAD
